Oridinary WPC composite decking features a straight-grain design, meaning the surface grain runs in a straight line. The grain on the top side is finer, while the back side has a slightly wider pattern. To ensure slip resistance, all our products are sanded for safety. Thanks to WPC’s waterproof properties, it is commonly used in outdoor settings, making excellent slip resistance particularly important.
Standard WPC composite decking comes in WPC hollow decking and WPC decking solid types, each with its own advantages and disadvantages. WPC hollow decking boards are relatively lighter in weight, making them more cost-effective. WPC decking solid boards are more stable and robust. Another advantage of WPC hollow decking boards is their better tolerance to thermal expansion and contraction due to the hollow structure, while WPC solid deck have lower resistance to temperature-induced expansion and contraction.
Below are some specifications of our standard WPC decking. The dimensions listed are width × thickness, while the length of WPC decking floor outdoor is generally customizable, typically ranging from 1.8 m to 2.4 m. For longer or shorter boards, please contact us for consultation.
Hollow Straight-Grain composite WPC decking – Square Hole Sizes:
- 140×25mm, 140×40mm, 145×50mm, 146×24mm, 146×25mm
- For hollow WPC decking, thicker decking are narrower and thinner decking are wider. This is due to structural and load-bearing considerations: thicker decks are narrower to increase rigidity and prevent bending in the middle, while thinner decks can be wider because their lighter weight allows for greater width and better material utilization.
Hollow Straight-Grain WPC Decking – Round Hole Sizes
- 140×25mm, 140×30mm, 150×25mm
Comparison of Round Hole vs. Square Hole Hollow Decking
| Feature | Round Hole | Square Hole |
| Load Bearing | Good | Moderate |
| Flexural Strength | Excellent | Average |
| Drainage/Ventilation | Poor | Excellent |
| Mold Cost | High | Low |
| Appearance | Smooth, rounded | Neat, modern |
| Safety | High | Slightly sharp corners |
- Recommendation: For indoor or high-load areas, round-hole hollow boards provide better stability. For outdoor areas requiring drainage and ventilation, or if budget is limited, square-hole hollow boards are more economical.

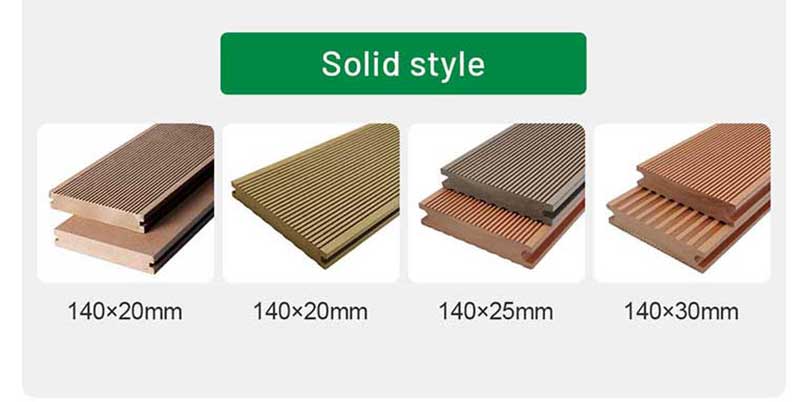

Solid Strip WPC Decking Dimension
- Sizes: 140×20/25/30mm
- Width is uniform at 140mm, while thickness can be selected based on requirements. Without hollow cavities, increasing width does not significantly affect bending risk. Therefore, decks of different thicknesses can maintain the same width without compromising stability.
| Feature | Hollow Round Hole | Hollow Square Hole | Solid WPC Decking |
| Cavity Structure | Round cavity | Square cavity | None |
| Load-Bearing Capacity | Good, even load | Moderate, corner stress | Excellent, high rigidity |
| Flexural Strength | Excellent, evenly distributed | Moderate, stress on corners | Excellent, hard to bend |
| Weight | Light | Light | Heavy |
| Width Design | Thin boards can be wide, thick boards narrower | Thin boards can be wide, thick narrower | Fixed width, thickness varies |
| Drainage/Ventilation | Average | Excellent, large neat holes | Poor, almost no ventilation |
| Mold Cost | High, complex | Low, simple | Medium, extrusion |
| Material Utilization | Average | High, efficient | Low, more material used |
| Installation Convenience | Good | Good | Best, uniform width, standardized accessories |
| Visual Effect | Smooth, soft | Neat, modern | Natural grain, visually heavy |
| Safety | High, round holes, no sharp edges | Lower, corners slightly sharp | High, smooth surface |
Summary and Selection Suggestions:
Solid boards or round-hole hollow boards: high load-bearing, suitable for long-span areas.
- Square-hole hollow boards: good drainage and ventilation, cost-effective, ideal for outdoor use.
- Solid boards: uniform width, easy installation, visually tidy.
WPC Straight grained decking Available Colors
Our standard WPC straight-grain decking comes in:
Red Brown, Mocha, Teak-A, Teak-B, Coffee, Silver Gray, Light Gray, Charcoal
We also support custom colors. You can mail us your color sample. Each board has two sides (top and bottom), and sanding slightly lightens the top color, so the two sides may have minor color differences.
Material Composition and Eco-Friendliness
Our standard WPC decking is made of 10% additives, 30% plastic, and 60% wood powder, making it eco-friendly. WPC products—including decking, doors, fences, and railings—can be recycled at wood-plastic factories. You only need to provide logistics for recycling, enabling a “trade-in” for old products.
Performance and Maintenance
- Strong UV resistance and excellent waterproof performance. About 95% of our boards are used outdoors.
- Installation is simple, requiring only screws and basic joists.
- Maintenance is minimal: unlike treated wood, WPC does not need regular painting to prevent insect damage, mold, or rot.
- WPC is insect-resistant and does not require painting. Simple cleaning to prevent water accumulation or oil stains is sufficient.
Why painting is unnecessary: The plastic in WPC makes it inherently waterproof and insect-resistant, reducing maintenance and cost. Over time, WPC provides better value. Paint contains chemicals that can be harmful; WPC eliminates this concern. Custom color changes are possible without painting—though painting is not recommended unless changing color is desired.

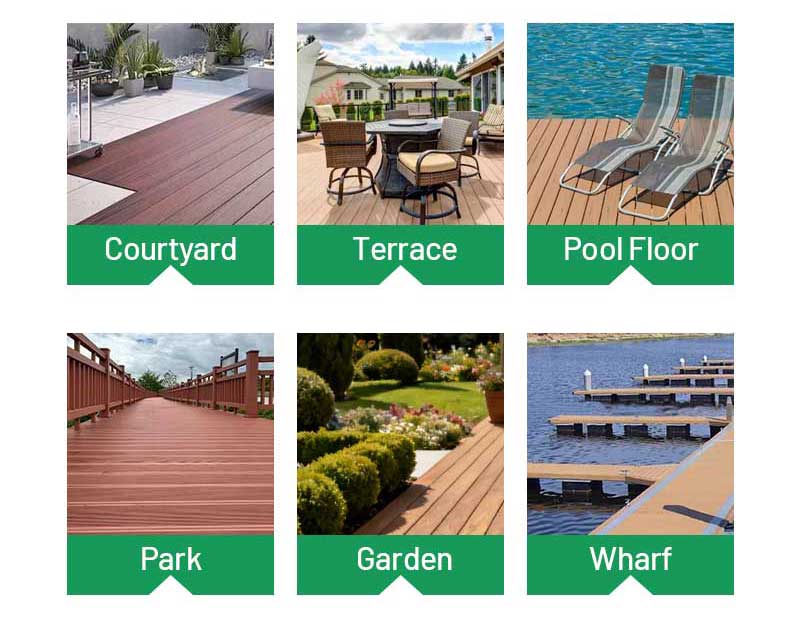

Recommended Installation Areas
- Outdoor Residential: balconies, terraces, patios
- Commercial Spaces: outdoor restaurants, cafes, walkways
- Water Features: swimming pool surrounds, fountains
- Public Infrastructure: park paths, viewing platforms
Interested customers can click the link below for more detailed information on our standard straight-grain WPC decking or contact us for the latest quotes.
