China WPC Fence Set is a modular, all-in-one outdoor fencing system that includes main structural components, panels, connectors, decorative pieces, and installation accessories, all ready to assemble right out of the box with no need for additional core parts. Below is a detailed breakdown of the complete components and their functions:
1. Core Structural Components (Load-bearing and Framework)

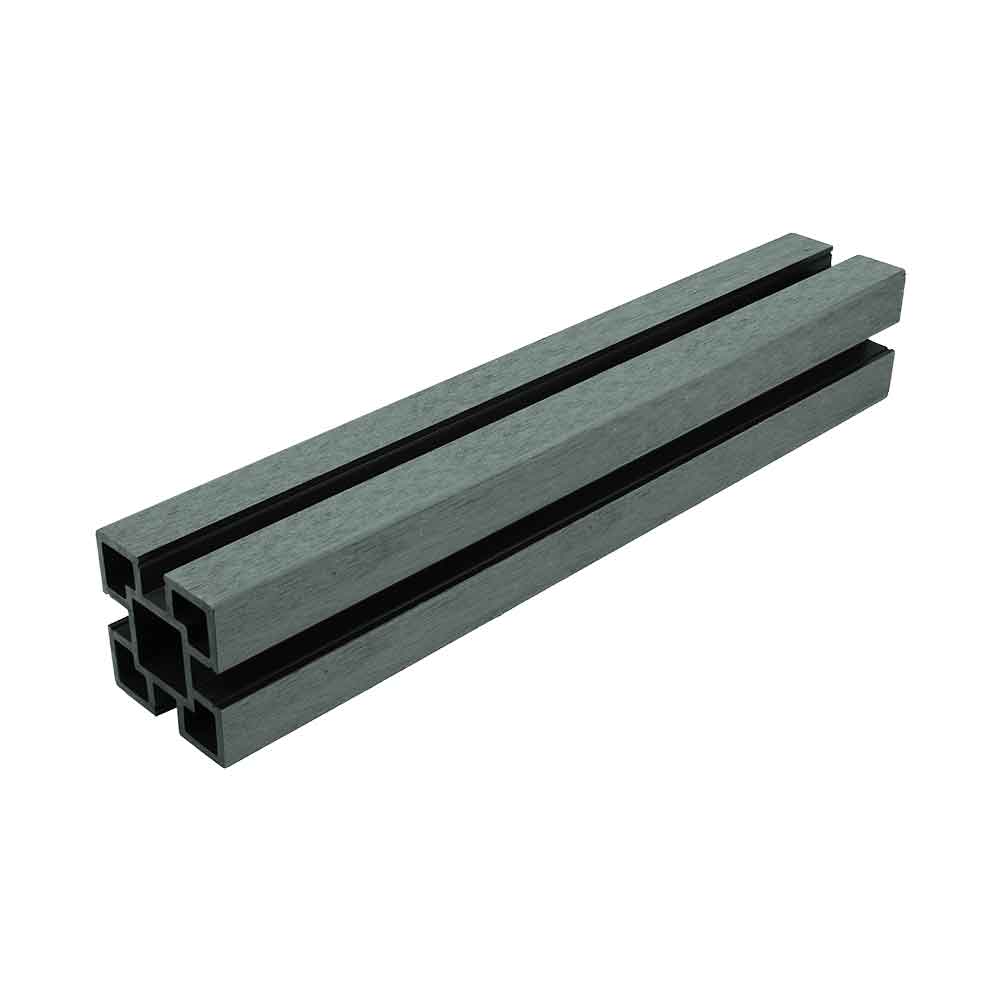

- WPC Fence Posts
- Material: WPC composite posts or aluminum-lined WPC outer posts (common sizes are 70×70mm, 80×80mm square posts)
- Specifications: Heights of 1.8m, 2.0m, 2.4m (suitable for 1.8m/2.0m high fences)
- Types: End post, mid post, corner post, with pre-cut slots for inserting panels
- Function: Supports the entire fence structure, ensuring stability and wind resistance

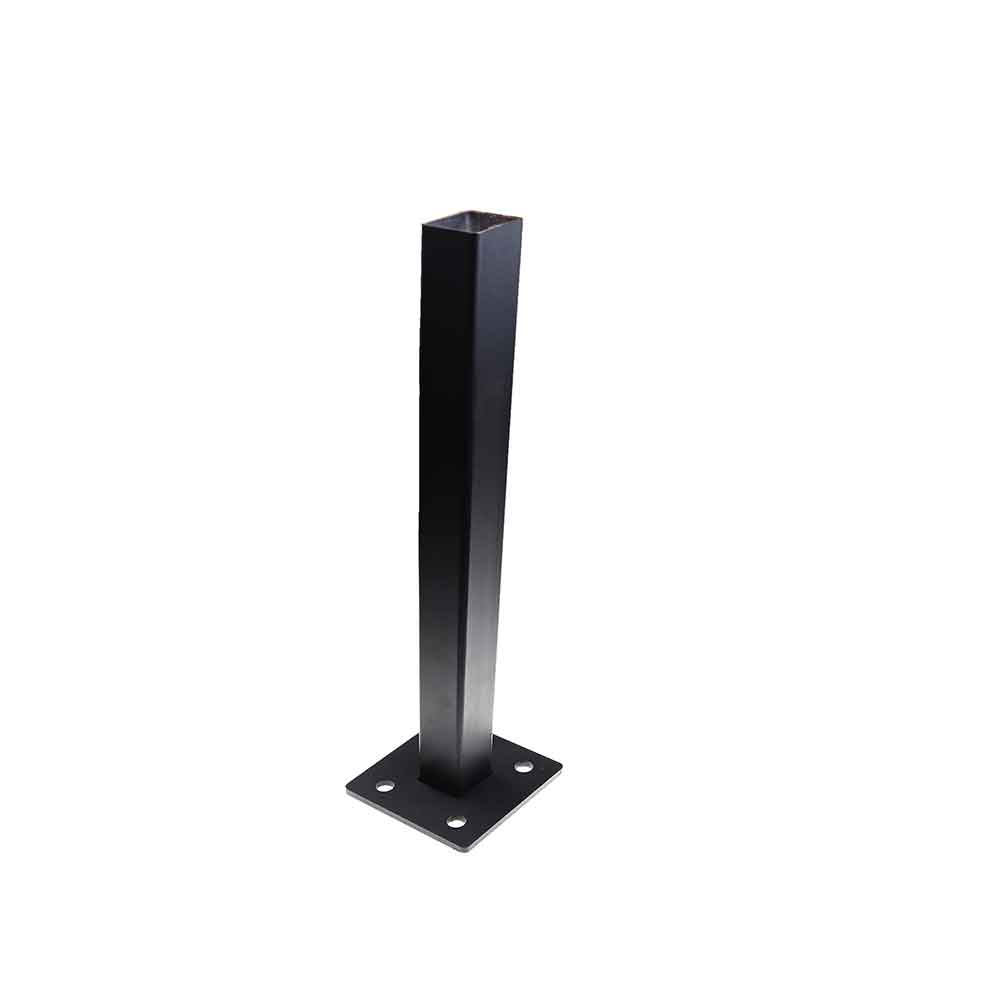

- Post Base/Anchoring Components
- Includes ground base plate, expansion screws/sleeve anchors for securing to the ground (concrete/tiles/lawn)
- Some sets include pre-buried bases that can be directly embedded underground and fixed with concrete
2. Fence Panels (Core Decorative and Privacy Elements)

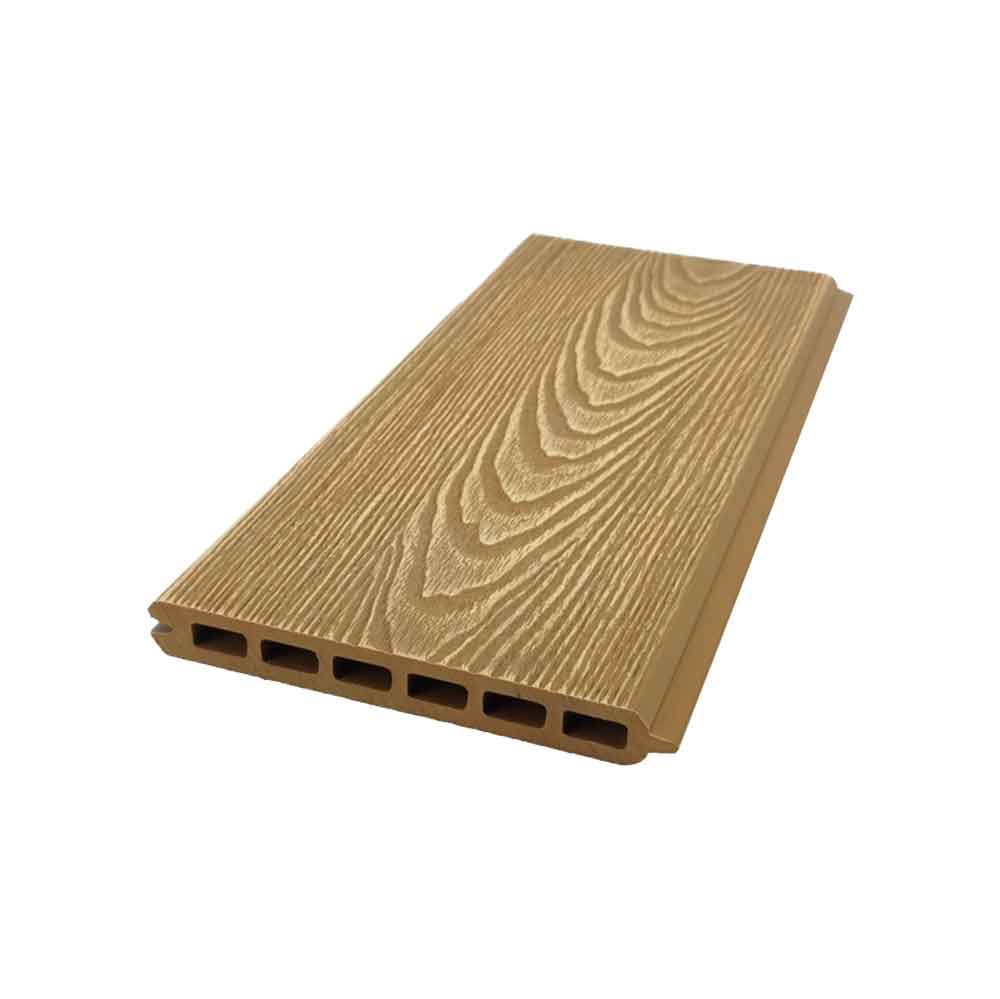

- WPC Fence Boards/Slats
- Specifications: Width 140–160mm, thickness 20–25mm, length fits panel (1.8m width is most common)
- Types: Solid boards (high privacy), hollow boards (lightweight), co-extruded boards (better weather resistance)
- Quantity: A 1.8m wide set typically contains 6–8 slats, horizontally/vertically assembled
- Top & Bottom Rails
- Made of WPC material, inserted into post slots to secure the fence boards, forming the complete panel framework
- Some sets include pre-assembled panels (slats + rails), directly snapping into the posts

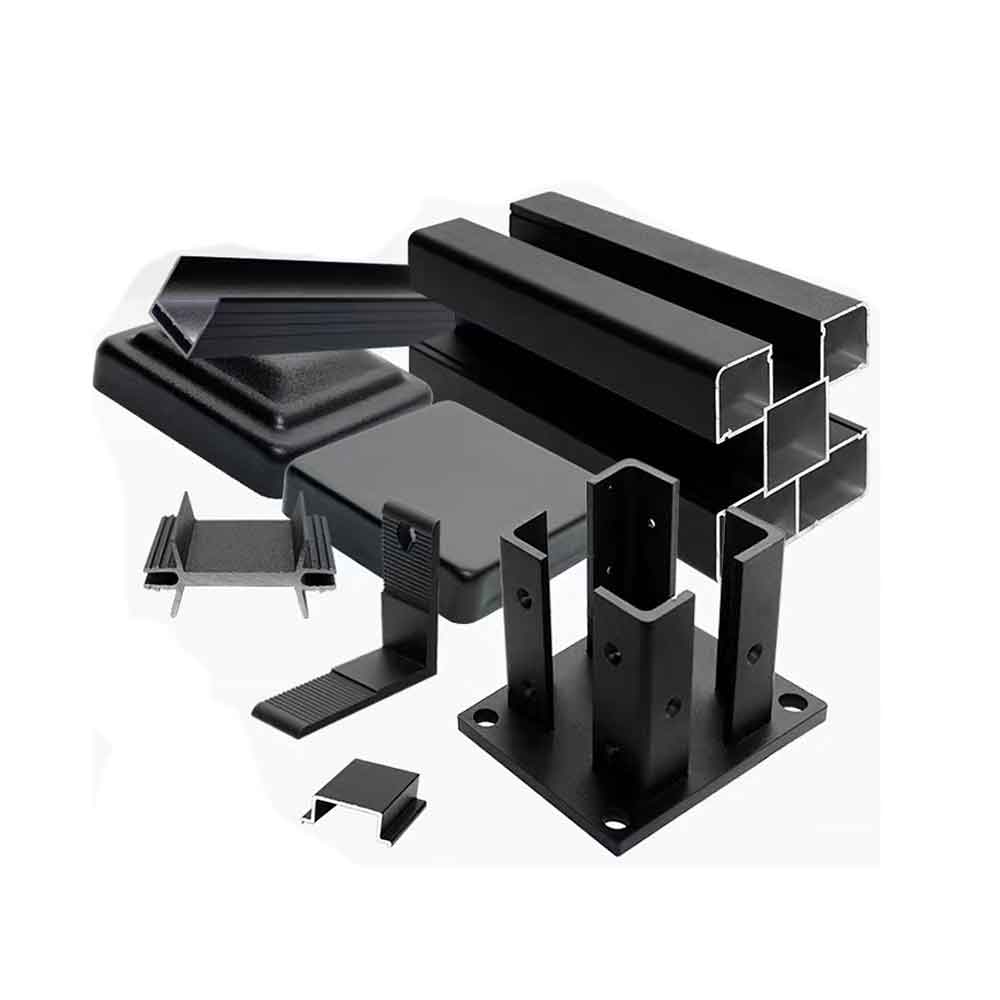

3. Connectors and Fasteners (Essential for Installation)
- Special Clips
- L-shaped clips: Secure the panels to posts/rails, 4–8 pieces per set
- U-shaped edge strips: Wrap around panel edges, for scratch prevention, aesthetics, and reinforcement
- Plastic/stainless steel clips: Secure slats to rails, providing a clean, hidden installation
- Screws and Accessory Kit
- Stainless steel self-tapping screws (for WPC and metal), washers, dust caps
- Specifications: M4–M6, length 20–30mm, rust-resistant and corrosion-resistant
Note: These accessories are typically black; custom colors can be made but will incur additional costs.
4. Decorative and Protective Components (Enhance Aesthetics and Lifespan)
- Post Caps
- Made of WPC or plastic, placed on top of the posts to prevent water, dust, and UV damage, serving as decorative finishing
- One cap per post, includes fastening screws
- Trim Strips
- Long/short edge strips to cover post seams and panel edges, improving overall smoothness and texture
5. Optional Expansion Components (Available Upon Request)

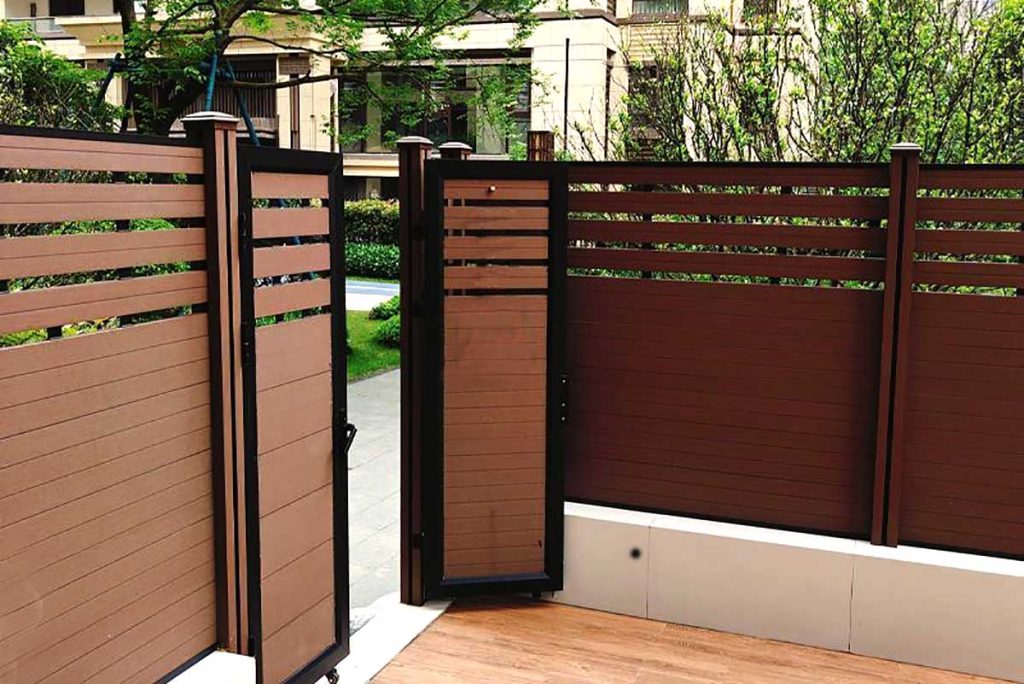

- WPC Fence Gate: Single gate (1.1m wide), double gate (3.2m wide), matching in material and style
- Corner Connectors: Suitable for 90°/135° corners, enabling flexible fence layout
- Installation Manual: Includes dimension diagrams, steps, and tool list, suitable for DIY assembly

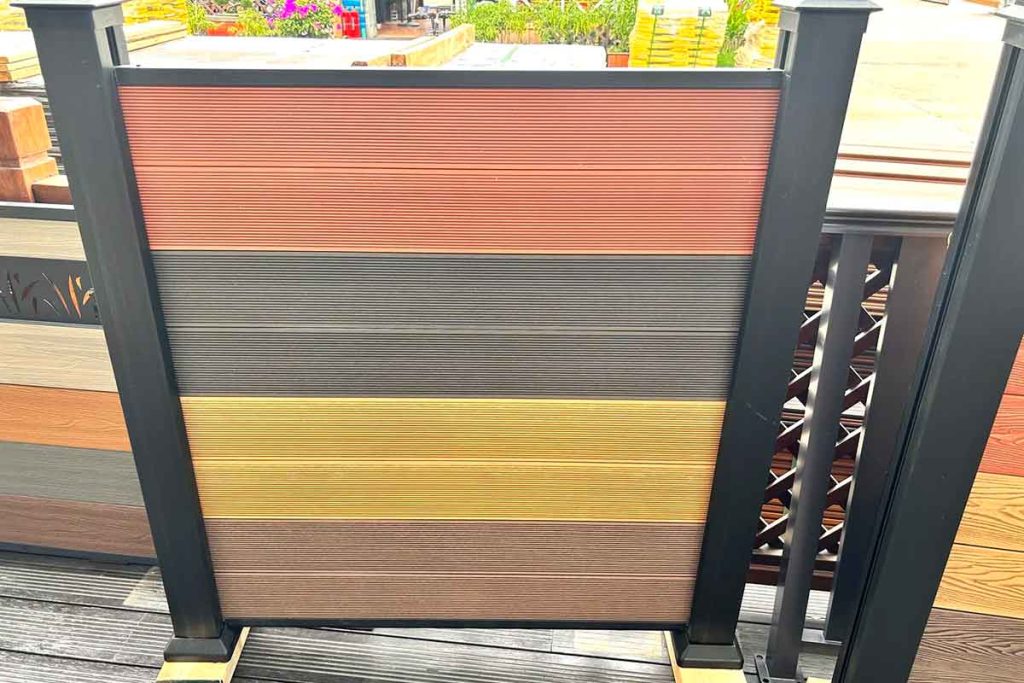

6. Standard Set Example (1.8m Width × 1.8m Height, Most Common)
- WPC Posts (70×70mm): 2 pieces (end post/mid post)
- WPC Panels (1.8m width): 1 set (6 slats + top & bottom rails)
- Post Bases: 2 sets
- L-shaped Clips: 4 pieces + screws
- Post Caps: 2 pieces
- Trim Strips: 2 long pieces + 4 short pieces
- Stainless Steel Screw Kit: 1 set
- Installation Manual: 1 copy
7. Set Advantages
- One-stop Purchase: All components included, no missing parts, no extra procurement cost
- Modular Assembly: Clips + screws secure the fence, no professional tools required, two people can complete installation in half a day
- Weather-resistant and Durable: WPC material is waterproof, corrosion-resistant, insect-proof, with a lifespan of 10–20 years, maintenance-free
- Unified Style: Same material, same wood grain, suitable for courtyards, gardens, villas, pool areas, and other outdoor spaces
Summary
The China WPC Fence Set is a complete solution for outdoor fencing, including structure, panels, connectors, decorations, and installation. The core components consist of posts, panels, clips, screws, and post caps, with optional gates and corner pieces for flexible configurations. It provides a true “unbox and install, use immediately” experience, making it a cost-effective choice for outdoor fencing.
